What Are Graphite Plugged Bronze Bushings?

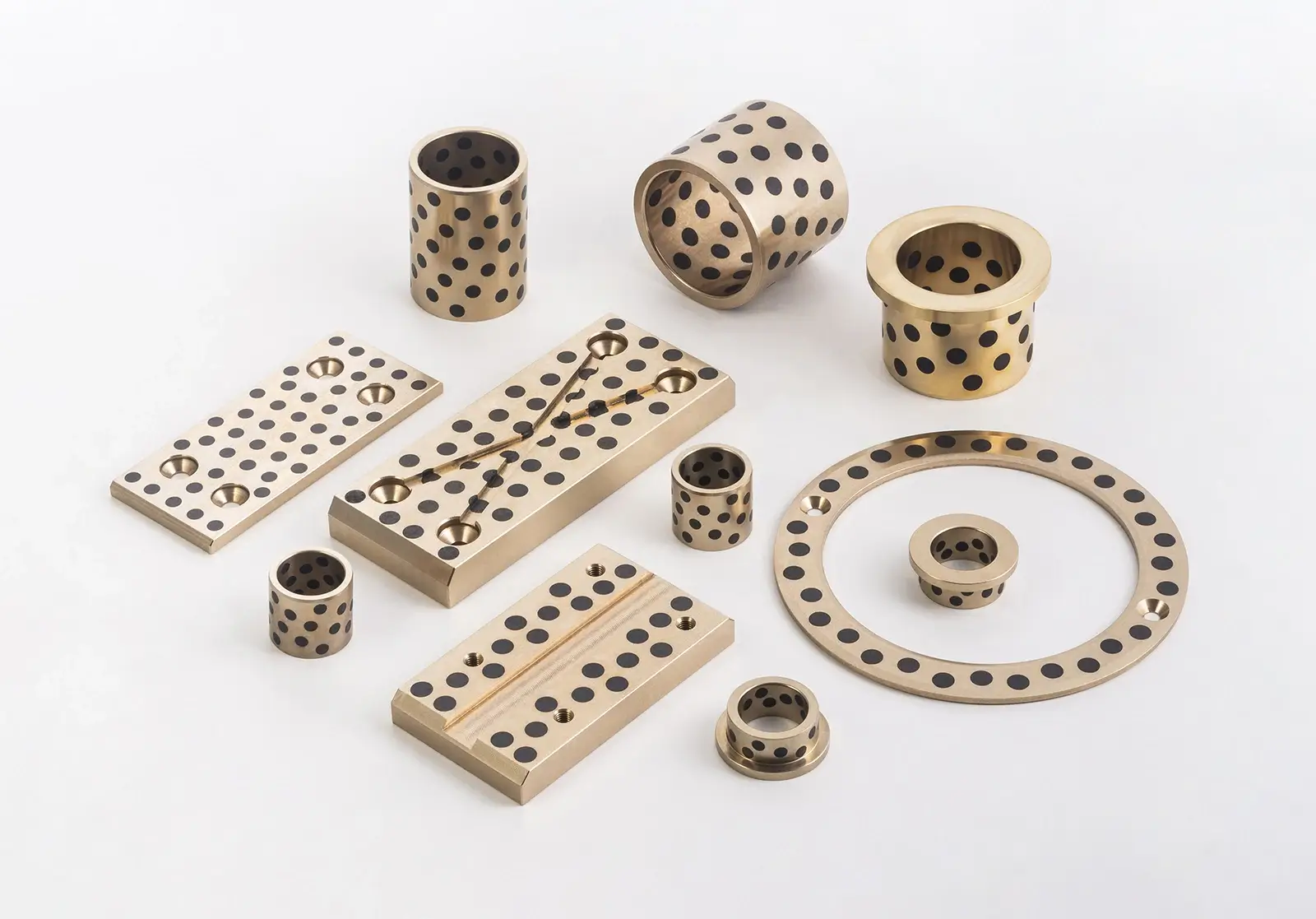

Graphite plugged bronze bushings are self-lubricating bearings made from cast bronze with holes drilled and filled with solid graphite lubricant. The distinctive appearance — a golden bronze base covered with black graphite plugs — makes these bushings instantly recognizable.
Unlike traditional cast bronze bushings that require periodic oil or grease lubrication, graphite plugged bearings are completely maintenance-free. The embedded graphite acts as a permanent solid lubricant that transfers to the shaft surface during operation, creating a self-replenishing lubricating film.
JBM graphite plugged bushings are manufactured from high-strength cast bronze alloys with precision-drilled holes filled with specially formulated graphite compounds. They excel in applications where conventional lubrication is impractical — high temperatures, clean environments, or hard-to-reach locations.
Graphite Coverage & Pattern
Optimal graphite-to-bronze ratio. Less = insufficient lubrication. More = reduced load capacity.
Geometric pattern ensures continuous lubrication film in any sliding direction.
Standard plug diameter. Custom sizes available for special applications.
Technical Data
| Base Material | Cast Bronze Alloy |
| Lubricant | Solid Graphite Plugs |
| Surface Coverage | 20-30% |
| Max Static Load | 100-120 N/mm² |
| Max Speed (Dry) | 0.5 m/s |
| PV Limit | 1.65 N/mm²·m/s |
| Temperature Range | -40°C to +400°C |
| Friction (Dry) | 0.08 - 0.18 |
| Lubrication | Maintenance-Free |
Industry Equivalents
JDB • 500# Series • Oiles 500 • MPBZ • Graphalloy
Direct replacement for all major OEM specifications
Solid Lubricant Film Transfer
Graphite plugged bushings work on a simple but effective principle: friction creates a protective lubricating film that continuously replenishes itself.
Friction Generates Heat
As the shaft rotates or oscillates, friction between the shaft and bearing surface generates localized heat at the contact points.
Graphite Expands & Transfers
Heat causes the graphite plugs to expand slightly. Graphite particles transfer (smear) onto the shaft surface, forming a thin solid lubricant film.
Protective Film Forms
The graphite film creates a separation layer between the bronze and shaft, dramatically reducing friction and preventing metal-to-metal contact.
Self-Replenishing
As the film wears, fresh graphite continuously transfers from the plugs, maintaining lubrication throughout the bearing's service life.
Why "Plugged" is Better Than "Coated"
Graphite Plugged
- Lubricant embedded through full wall thickness
- New graphite exposed as surface wears
- Lifetime lubrication — no reapplication needed
- Handles heavy loads without lubricant loss
Surface Coated
- Thin lubricant layer on surface only
- Coating wears away over time
- May need recoating/replacement
- Limited load capacity before breakthrough
Cast Bronze Alloy Grades
JBM offers graphite plugged bushings in multiple base alloys. Select the bronze grade that best matches your load, temperature, and environmental requirements.
| Property | High Tensile Brass | Aluminum Bronze |
|---|---|---|
| Alloy Code | C86300 / CuZn25Al5Mn4Fe3 | C95400 / CuAl10Ni5Fe4 |
| Appearance | Golden Yellow | Darker Gold / Bronze |
| Max Load | 100 N/mm² | 120 N/mm² |
| Temperature Range | -40°C to +300°C | -40°C to +400°C |
| Corrosion Resistance | Good | Excellent (Seawater) |
| Hardness | HB 210+ | HB 180+ |
| Best For | General high-load applications | Marine, chemical, high-temp |
| JBM Model | JBM-650 | JBM-650 (Al-Bronze option) |
Why Choose JBM Graphite Plugged Bushings
Maintenance-Free
Self-lubricating design eliminates oil/grease maintenance. No lubrication points to service throughout bearing life.
Extreme Temperature
Operates continuously up to 400°C with aluminum bronze base. Outperforms any polymer bearing in high-heat environments.
Heavy Load Capacity
Cast bronze base handles static loads up to 120 N/mm². Ideal for slow-speed, high-load applications.
Clean Operation
No oil or grease to leak or contaminate products. Perfect for food, pharmaceutical, and cleanroom environments.
Water & Chemical Resistant
Graphite lubrication works in water and many chemicals. Aluminum bronze option excels in seawater and corrosive environments.
Impact Resistant
Solid cast bronze construction absorbs shock loads. Graphite plugs won't crack or fail under impact like coatings.
Self-Repairing Film
Graphite film continuously replenishes from embedded plugs. Minor surface damage "heals" as new lubricant transfers.
Custom Shapes
Cast bronze can be machined into bushings, wear plates, guide rails, and complex custom geometries.
